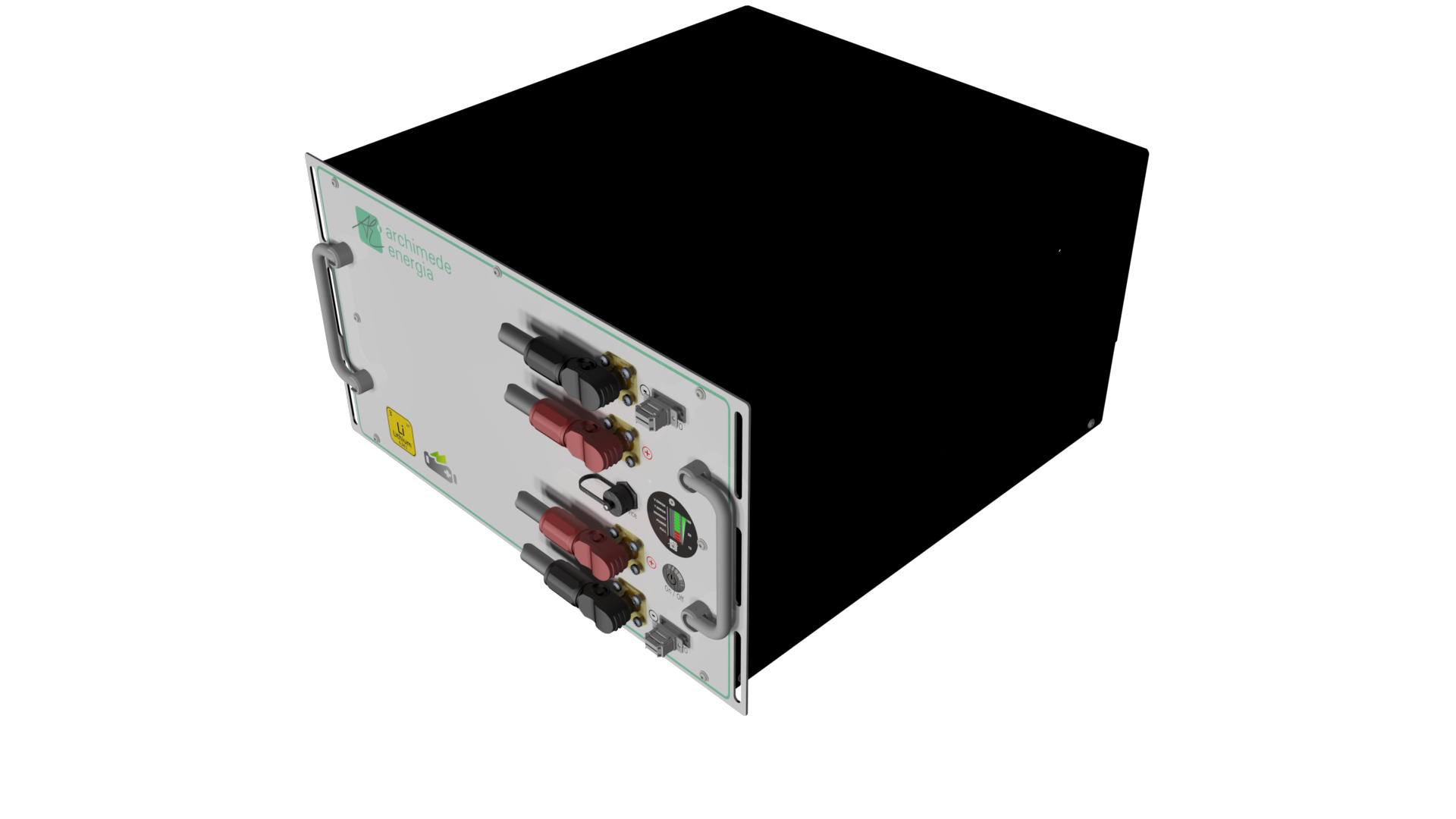

PJO-048-111-RK1

LiNMC 48,1V 111Ah Battery

Assembled with 39 high performance LINMC cells gives this
accumulator an energy density equal to 42Wh/lbs and a
continuos discharge power of 7,22 kW. The PJO-048-111-RK1 has a
BMS developed by Archimede Energia for the control
(temperature, voltages and current) and the complete battery
management (contactors). A suite of software applications for the
management of all functions complete the offers

  • Chemical: LiNMC
  • Nominal voltage: 48,1 VDC
  • Capacity: 111 Ah
  • Dimension (LxWxH): 19,68 x 18,97 x 10,40 inch
  • Weight: ~ 128 lbs
  • Certifications: EN 61000-6-2:2005 +AC:2005; EN 61000-6-4:2007 +A1:2011; EN 50581:2012
