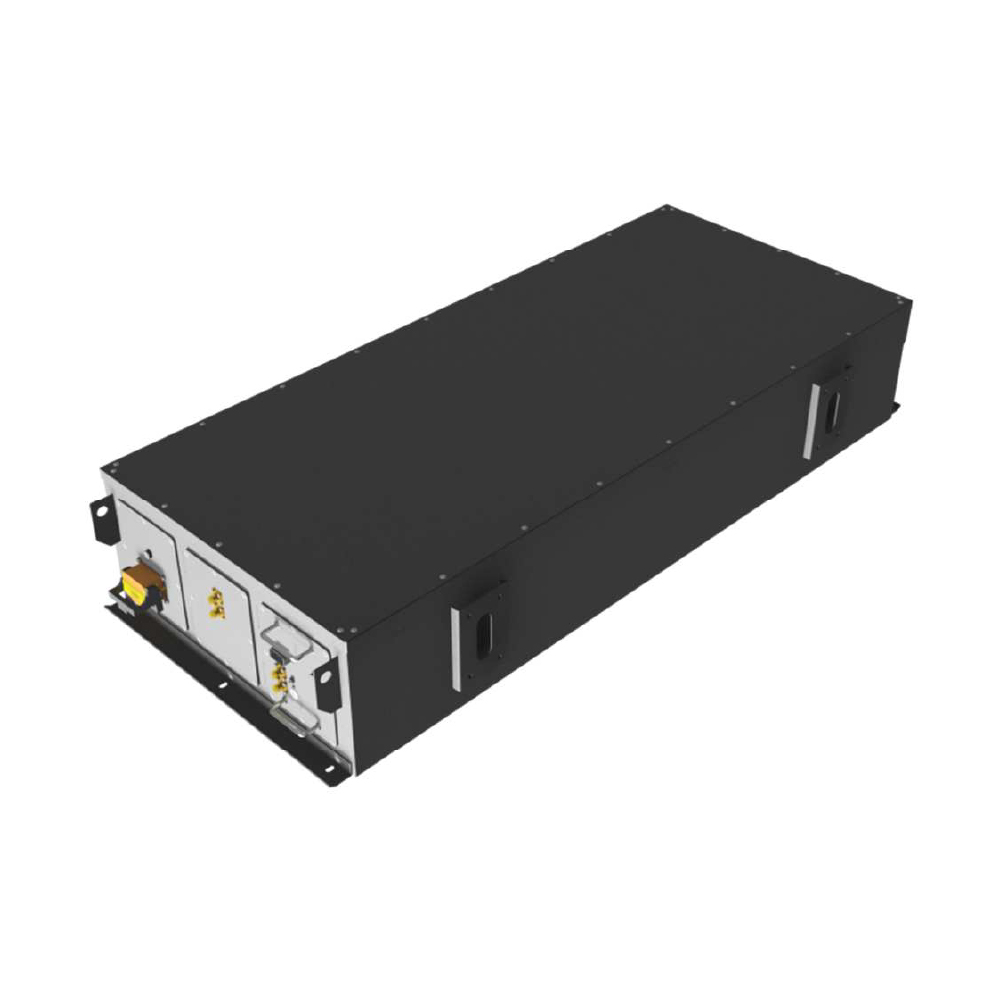

PJO-048-750-TCU

LiNMC 48,1V 750Ah Battery

Assembled with 195 high performance LINMC cells gives this accumulator an energy density equal to 16,89Wh/lbs and a continuos discharge power of 15,39 kW. The PJO-048-750-TCU has a BMS developed by Archimede Energia for the control (temperature, voltages and current) and the complete battery management (contactors). A suite of software applications for the management of all functions complete the offers.

Chemical: LiNMC
Nominal voltage:48,1 VDC
Capacity: 750 Ah
Dimension (LxWxH): 73,82 x 31,49 x 13,18 inch
Weight: ~911 lbs
Certifications: EN 61000-6-2:2005 +AC:2005; EN 61000-6-4:2007 +A1:2011; EN 50581:2012
