DSP-SOC-MTR-CBS

AE CAN-Bus SOC Meter

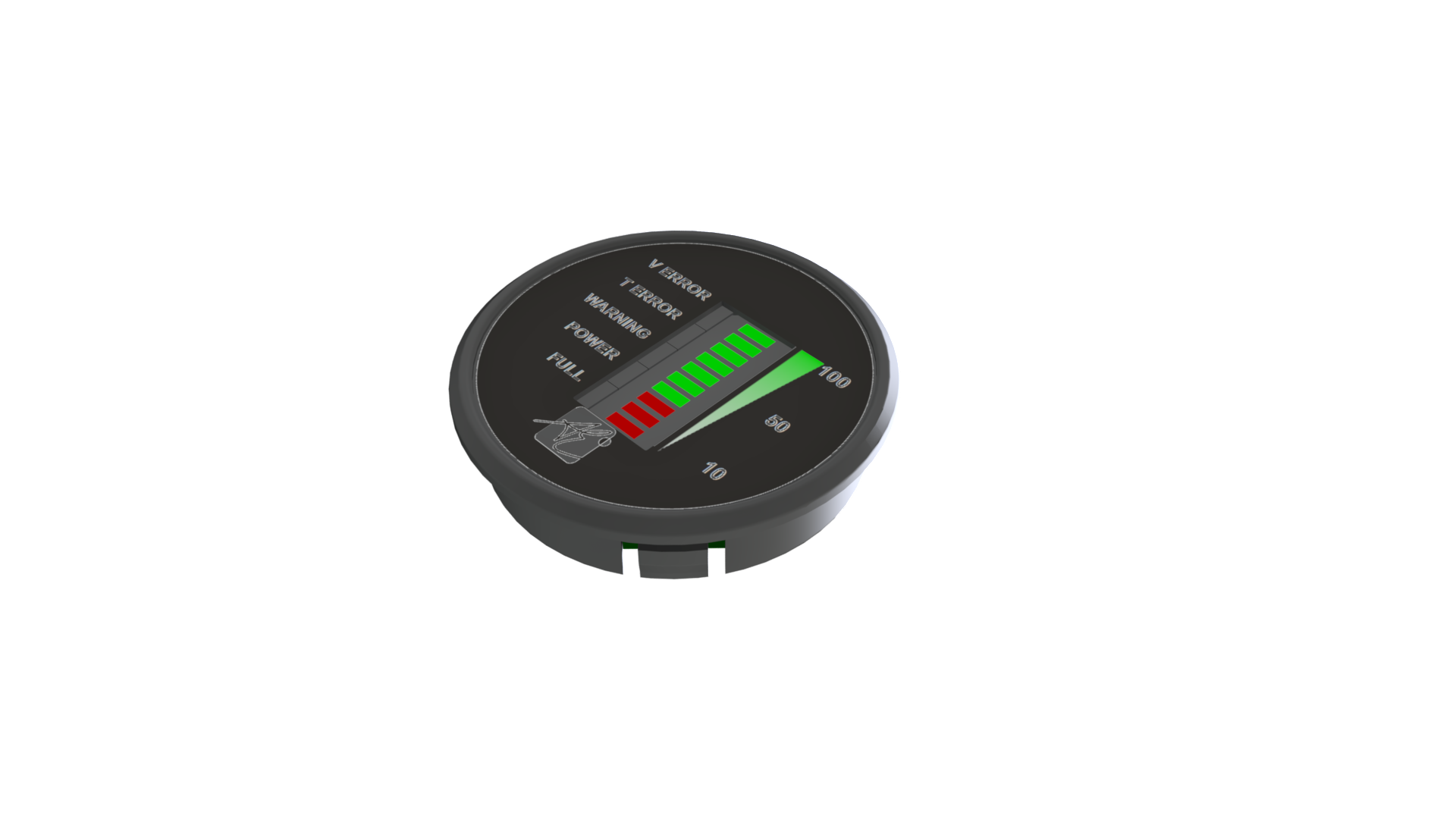

AE CAN-Bus SOC Meter is a circular instrument developed by Archimede Energia for displaying the SOC (State of Charge) and all information relating to lithium batteries from Ænerbox2 range. The peculiarity of this product is the possibility of interpreting, view and manage information from the battery away CAN-bus via microcontroller ARM Cortex M3. The circular shape and the mechanical structure allows its easy installation in any context. The display includes a 10-LED graphic bar to indicate the SOC and 5 other LEDs for status.
  • Supply Voltage: Nom 12V Max 24V
  • Power Dissipation (Watt): Nom 1,5W Max 2W
  • Display Box Dimension (d;h): 56mm; 15mm
  • Weight : 20gr
  • Warranty: 2 years
  • CAN-Bus Interface: 1 x CAN-Bus SN65HVD234-Q1 NOT ISOLATED
