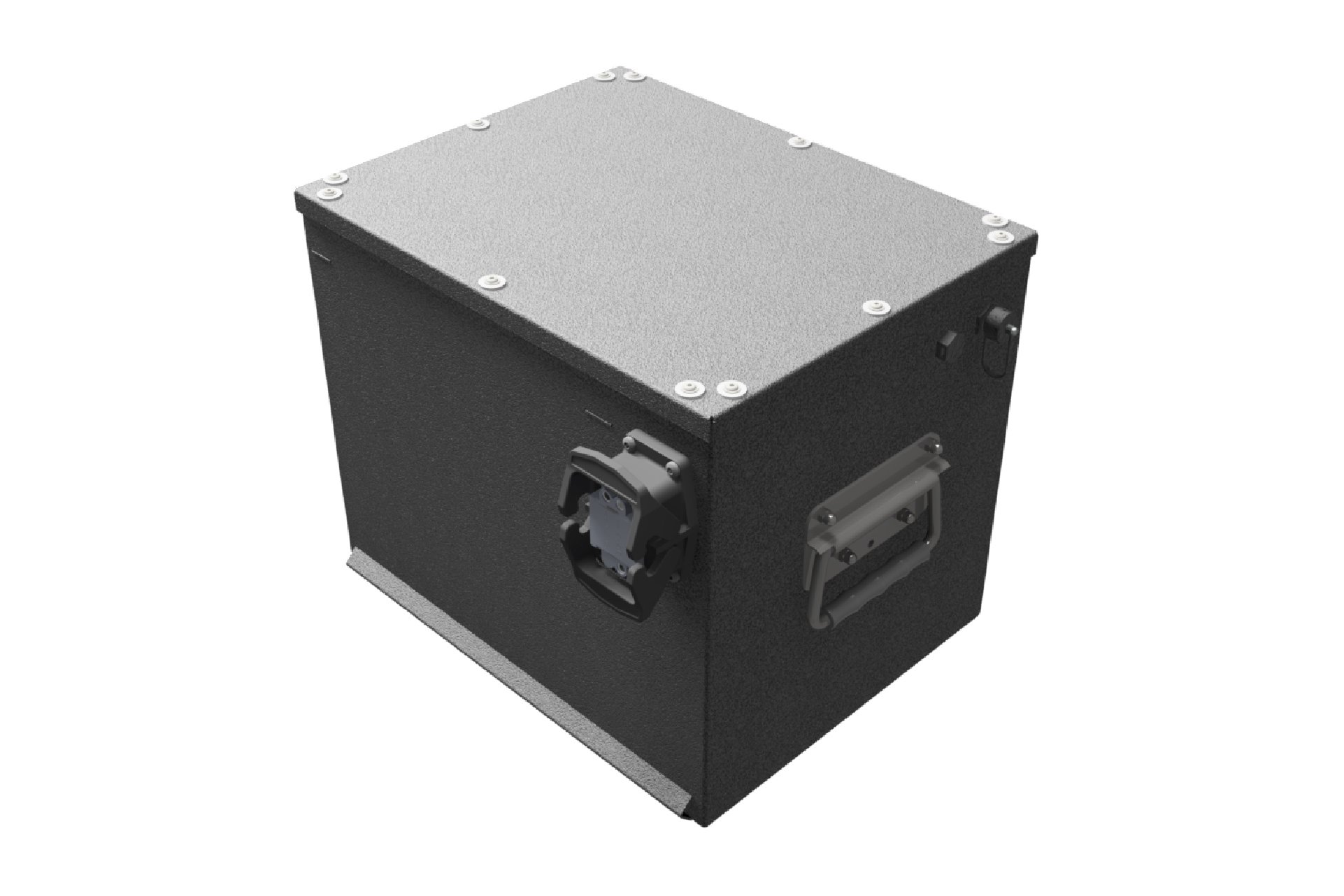

PJO-074-050-TDZ

LiNMC 74V 50Ah Battery

Assembled with 20 high performance LINMC cells gives this accumulator an energy density equal to 66Wh/lbs and a continuos discharge power of 5,55 kW. The PJO-074-050-TDZ has a BMS developed by Archimede Energia for the control (temperature, voltages and current) and the complete battery management (contactors). A suite of software applications for the management of all functions completes the offers.

Chemical: LiNMC
Nominal voltage: 74 VDC
Capacity: 50 Ah
Dimension (LxWxH): 15,35 x 12,59 x 11,88 inch
Weight: ~ 84 lbs
Certifications: EN 61000-6-2:2005 +AC:2005; EN 61000-6-4:2007 +A1:2011; EN 50581:2012
